Comply with the latest Australian regulations
Comply with the latest UK legislation
The product is in line with Dutch legislation requiring households
to install smoke sensors on July 1
Our interconnected products with different functions (smoke
detector/carbon monoxide/temperature sensor/under-pillow vibrator
for the disabled/audible and visual alarm, etc.) can be connected
together to give an alarm, and all products will give an alarm
Whatsapp:+8618838154222
Product introduction

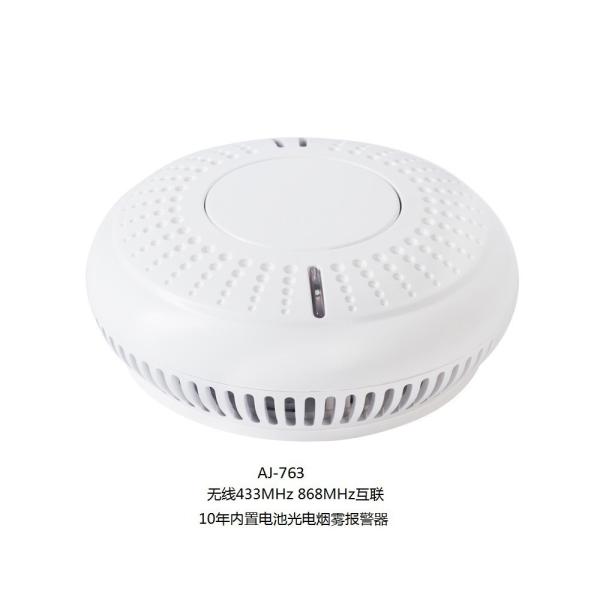

AS3786 EN14604 Wireless Interconnection smoke detector Household
smoke detector
10 years lifespan DC 3V lithium battery powered.
When one alarm sounds, all alarms will sound
Suggested to connect 20 pcs (operation) in one group
433MHz Wireless interconnection frequency,
Big button for easy test and hush and locate
Interlinked with the wireless heat detector, CO detector, remote
controller, vibration detector, siren, etc.
WIFI Interconnected optional for controlled by Mobile APP
Features of the product
Working Voltage:DC3V bulit-in lithium battery(CR 123A) ,
Battery life:10 years
Standby current:﹤10uA
Alarm current:﹤60mA
working temprature :-10C~+50C
Relative Humidity:≤95%RH
Wireless frequency: 433.92 Mhz GFSK
Low voltage threshold:2.7V
RF Distance: >200m (open area)
Alarm mode:LED & Buzzer
big test button OR remote for easy Recommended monthly testing and
hush
Alarm sound:﹥85dB/3m
Net weight: 0.14KG
product size : Φ110mm×H42mm
Execute Criterion:EN14604:2005 / AC:2008 AS3786:2014
Details
Installation Instructions
Installation location:
1)The detector and gas source should be located in the same indoor
space.
2)The detector distance may be 1~3 meters away from the possible gas
leak source is the best.
3)The detector should be installed less than 30cm from the ceiling.
Kitchen installation illustration
Maintenance
1) After storage and long time transport, the first time in use needs
electricity aging more than 24 hours in
order to achieve the best performance.
2) During the usage period, activate the self-test at least once
six month to confirm that the device works
normally. In the case of safety, please use a known concentrate gas
for impacting test to confirm that the
device work normally.
3) It’s suggested to clean the shell of the combustible gas
detector frequently to prevent its air hole being
blocked by dust. When cleaning the shell of the device, use clean
soft brush or dry fluffy cloth without
detergent, decolorizer and polish. Cut off power supply when
cleaning the shell.
4) N1 is designed for indoor use only. Please avoid contacting with
rain, moisture, also need to avoid
drop. Do not beat, open or modification it, otherwise it may lead
to product failure.
5) The detector should not be used near the volatile substance such
as alcohol, hair gel, etc.
If false report caused, please open the ventilation device to make
sure the detector return to normal detecting conditions.
6) Under normal circumstance, the service is 5 years. Please
replace with new ones if exceed the
lifespan.
About Us
Henan Weiguo Intelligent Technology Co., Ltd, is an innovative
technology company in China and is the pillar enterprise of the
healthy home business division of Hanwei Electronics (stock number:
300007). Focusing on the complete chain of design, R&D,
production and sales of “AirRadio”air quality products, we strive
to supply air health service for the human beings in the world.
Hanwei Electronics Group Corporation(Stock no.:300007) founded in
1998, is a trustworthy innovative technology company, and the
largest gas sensors and instruments manufacturer in China and
listed on China’s Growth Enterprise Board in the first batch,
devoting ourselves to promise a safe, environmental friendly,
healthy and smart working and living environment. Based on IOT
industry, Hanwei Electronics will combine sensors, intelligent
terminals, communication technology, cloud computing and geographic
information IOT technology together closely to create Hanwei cloud
so as to establish a complete IOT industry chain. Hanwei
Electronics focuses on the customer value oriented, provide perfect
solutions for smart city, production safety, environmental
protection, health of the people's livelihood.
