Product introduction

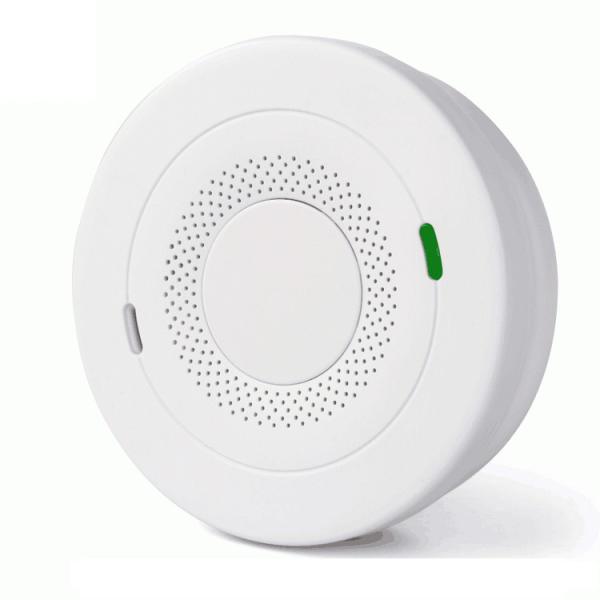

UL217 Independent smoke alarm, 10 years built-in battery
photoelectric independent smoke alarm detector
Features of the product
Working Voltage:DC3V bulit-in lithium battery(CR 123A)
Battery life:10 years
Standby current:﹤5uA
Alarm current:﹤60mA
Alarm sound:﹥85dB/3m
Low battery threshold:2.5±0.1V
Alarm mode:Siren with flash(Buzzer & Red LED)
Big test button for easy recommended monthly testing
Gross weight: 0.295KG
product size : Φ135mm×H39mm
Execute Criterion:UL217
Details
Installation Instructions
Installation location:
1)The detector and gas source should be located in the same indoor
space.
2)The detector distance may be 1~3 meters away from the possible gas
leak source is the best.
3)The detector should be installed less than 30cm from the ceiling.
Kitchen installation illustration
Maintenance
1) After storage and long time transport, the first time in use needs
electricity aging more than 24 hours in
order to achieve the best performance.
2) During the usage period, activate the self-test at least once
six month to confirm that the device works
normally. In the case of safety, please use a known concentrate gas
for impacting test to confirm that the
device work normally.
3) It’s suggested to clean the shell of the combustible gas
detector frequently to prevent its air hole being
blocked by dust. When cleaning the shell of the device, use clean
soft brush or dry fluffy cloth without
detergent, decolorizer and polish. Cut off power supply when
cleaning the shell.
4) N1 is designed for indoor use only. Please avoid contacting with
rain, moisture, also need to avoid
drop. Do not beat, open or modification it, otherwise it may lead
to product failure.
5) The detector should not be used near the volatile substance such
as alcohol, hair gel, etc.
If false report caused, please open the ventilation device to make
sure the detector return to normal detecting conditions.
6) Under normal circumstance, the service is 5 years. Please
replace with new ones if exceed the
lifespan.
