ATEX Combustible and Toxic gases H2s, Co, O2 LEL Fixed Gas
Detectors for industrial gas detection application
Descriptions:
This series of gas detection transmitters adopt the most advanced
ultra-large scale integrated circuit technology and are designed by
the international standard intelligent technology level. It is a
completely intelligent gas detection transmitter designed by
digital and analog hybrid communication technology. The intelligent
gas detection transmitter has advanced technology, excellent
performance, high stability, communication and self-diagnosis
functions, easy installation and maintenance, and the advanced
performance of typical intelligent field monitoring instruments has
been fully demonstrated, which greatly meets the needs of industry.
On-site safety monitoring requires high reliability of equipment.
It is widely used in petroleum, chemical industry, metallurgy,
refining, gas transmission and distribution, biochemical medicine
and other industries. The instrument is compatible with various
control alarms, PLC, DCS and other control systems, which can
realize remote detection, control and alarm.
Features:
- Sensor type: Catalytic, electrochemical, NDIR or PID gas sensor
- Gas sampling: Natural diffusion
- Power supply: DC24V±25%
- Power consumption: ≤3W
- Working method: Continuous monitoring
- Accuracy: ≤±5%F.S.
- Display and indication:
- 4-digit LED screen displays gas concentration in time
- 3 LED lights indicate detector status of power, fault and alarm
- Setting by: IR remote
- Response time:
- Catalytic sensor: ≤30s Electrochemical sensor: ≤60s
- NDIR sensor: ≤10s PID sensor: ≤10s
- Working temperature:
- Catalytic sensor: -40～50℃ Electrochemical sensor: -20～50℃
- NDIR sensor: -40～70℃ PID sensor: -40～50℃
- Working humidity: ＜95%RH (no condensation)
- Explosion-proof: Ex dⅡCT6
- Protection: IP65
- Pressure Limit: 86-106kPa
- Signal output: 4-20mA / RS485
- Relay output: 2 free contact (available for 4-20mA type only)
- Transmission distance: ≤1000m
- Dimensions: l×b×h, 210×200×105mm
- Weight: about 2100g
Technical Parameters:
Target gases:
| Gas | Range | Resolution | Calibrating gas flow |
| LEL | 0-100%LEL | 1%LEL | 500±50ml/min |
| CH4 | 0-5%VOL | 0.1%VOL | 500±50ml/min |
| CO | 0-500PPM | 1PPM | 200ml/min |
| H2S | 0-100PPM | 1PPM | 200ml/min |
| O2 | 0-25%VOL | 0.1%VOL | 300±50ml/min |
| NH3 | 0-100PPM | 1PPM | 500±50ml/min |
| CL2 | 0-10PPM | 0.1PPM | 1000±50ml/min |
| HCL | 0.20PPM | 1PPM | 500±50ml/min |
| H2 | 0-1000PPM | 1PPM | 200ml/min |
| SO2 | 0-30PPM | 0.1PPM | 600±50ml/min |
| CO2 | 0-6000PPM 0-5%VOL | 1PPM 0.1%VOL | 500±50ml/min |
| NO | 0-1000PPM | 1PPM | 200ml/min |
| NO2 | 0-20PPM | 0.1PPM | 1000±50ml/min |
| HCN | 0-20PPM | 1PPM | 200ml/min |
| ETO | 0-100PPM | 0.1PPM | 200ml/min |
| VOC | 0-500PPM | 1PPM | 200ml/min |

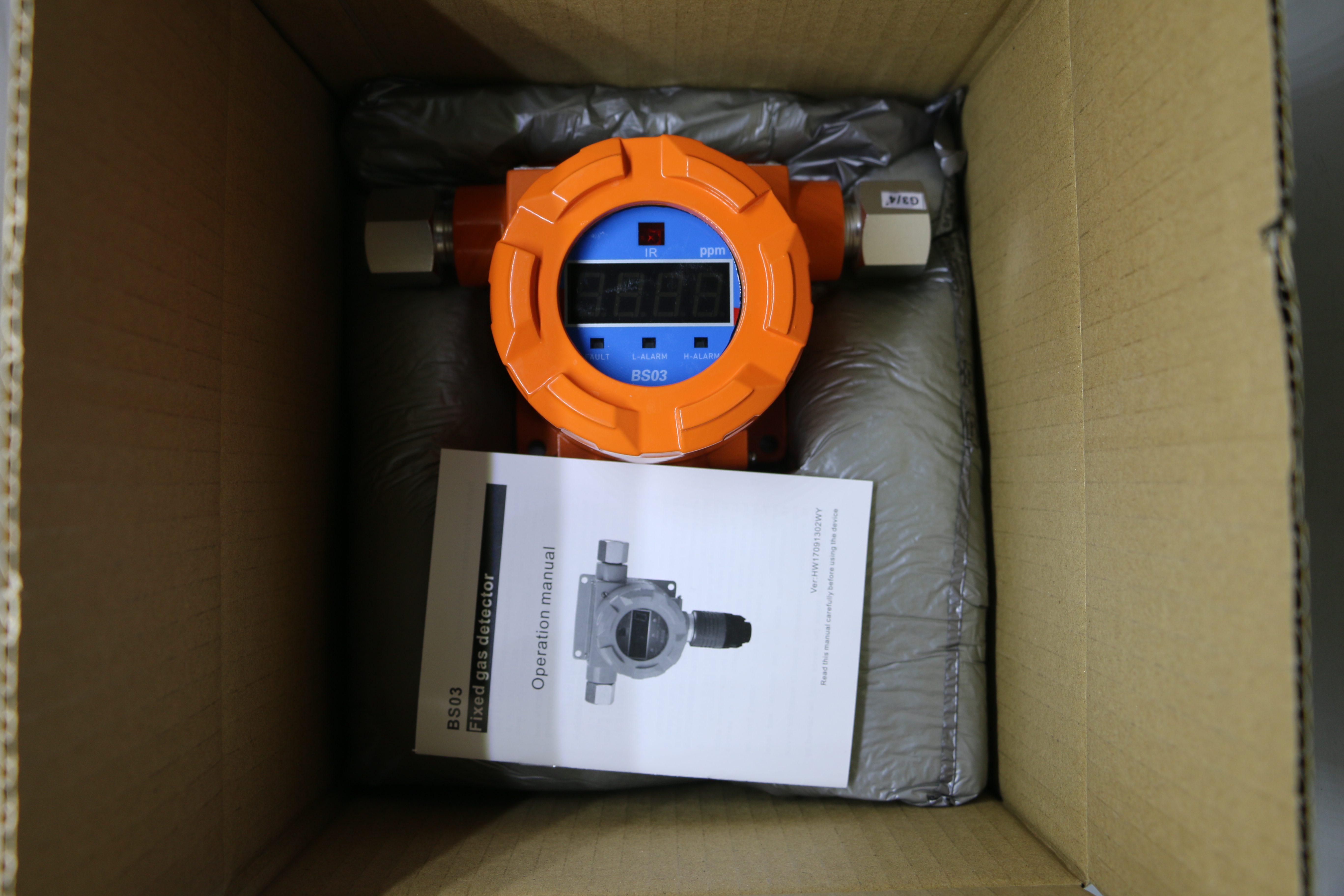

Package:
