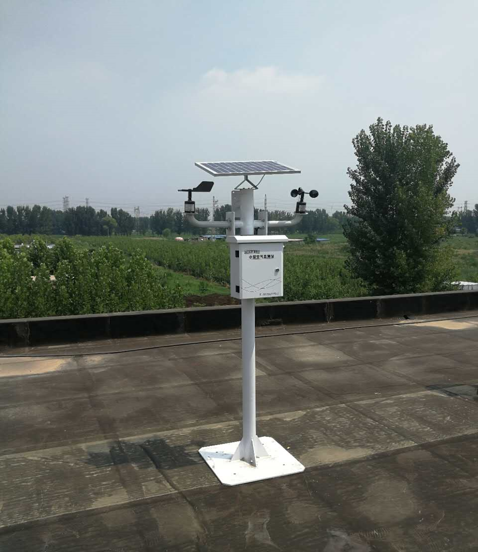

Scad-200 small air station for outdoor air quality monitor TVOC
,temperature , humidity , particulate matter ,
Description:
The system can monitor PM2.5 and PM10, temperature, humidity, wind
speed, wind direction, VOCs, sulfide (H2S), amine (NH3), and other
pollutants(expandable) in the environment. The system pushes the
collected data to the on-site display screen in real time for
reference of on-site personnel, and upload it to the cloud platform
of the system. The platform will conduct big data analysis
according to the data collected from various points, dig out the
law of atmospheric quality change, and provide strong data support
for macro control policies.
Features:
- Easy for installation
- Solar power supply
- Clamp or bracket installation
- Wireless data transmission
- Cloud services on the Big Data computing
- Real-time monitoring
- High accuracy
- Real-tie data transmission
- High ingress protection, suitable for outdoor use
- Cloud processing technology is adopted in the background, and the
platform collects a large amount of data for comprehensive
analysis.
Technical Parameters:
- Power supply: Solar (with backup battery)
- Working time: >300h (continuous working at 20℃)
- Working temperature: -30 to 60℃
- Working humidity: ＜95%RH (No condensation)
- Sensor life: 2 years
- Weight: About 40kg
- PM sensor type: Laser sensor
- Speed/direction sensor: Mechanical sensor
Sensor data:
| Sensor | Range | Resolution | Accuracy | Ramark |
|---|
| PM2.5 | 0-1000μg/m3 | 1μg/m3 | ±10%FS | Standard |
| PM10 | 0-1000μg/m3 | 1μg/m3 | ±10%FS | Standard |
| SO2 | 0-1000μg/m3 | 1μg/m3 | ±10%FS | Standard |
| NO2 | 0-1000μg/m3 | 1μg/m3 | ±10%FS | Standard |
| CO | 0-5000μg /m3 | 1μg/m3 | ±10%FS | Standard |
| O3 | 0-1000μg/m3 | 1μg/m3 | ±10%FS | Standard |
| Temp. | -40℃-70℃ | 1℃ | ±1℃ | Standard |
| Hum. | 10-95%RH | 1%RH | ±2%RH | Standard |
| Speed | 0-30m/s | 0.1m/s | ±0.3m/s | Standard |
| Direction | 0°-360° | 1° | ±1° | Standard |
| TSP | 0-20mg/m3 | 1ug/m3 | ±10%FS | Optional |
| Noise | 30-130dB | 1dB | ±10%FS | Optional |
