Extraordinary Experience Flexible Thin Film Pressure Sensor
ZD10-100 for Better Life

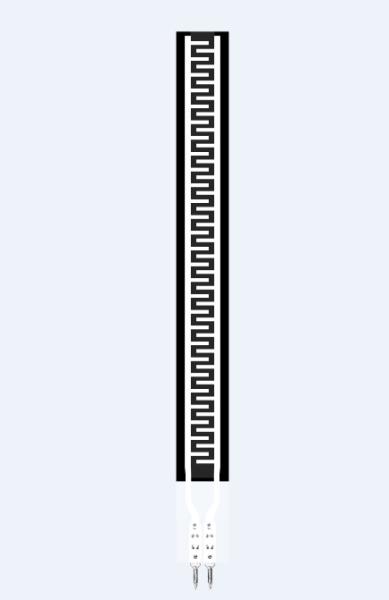

Description
ZD10-100 flexible thin film pressure sensor is a new type of sensor
with independent intellectual property rights of flexible pressure
sensor technology. It is printed on flexible thin material with
strong adhesion, bending resistance and high sensitivity of
flexible Nano functional materials, so as to achieve high
sensitivity of pressure detection.
The flexible film pressure sensor is a resistive sensor. The output
resistance decreases as the pressure applied to the surface of the
sensor increases. The pressure can be measured through a specific
pressure-resistance relationship.
ZD10-100 is mainly used for small pressure detection in a certain
area. Its response point is as low as below 50g, which can
effectively detect the pressure trigger and pressure change on the
surface of the ZD10-100 sensor. Can be widely used in smart home,
consumer electronics, automotive electronics and other fields
Features
Ø Ultra-thin,thickness less than 0.3mm
Ø Flexible waterproof package
Ø bending resistance
Ø Quick response
Ø Long life,passed the pressing test of more than 1 million times
Ø The output signal is easy to detect
Ø Customizable product length, size, pin package, etc.
Ø The sensor range parameters can be customized
Performance Index
| Model | ZD10-100 |
| Range | 0~500g |
| Thickness | ≤0.3mm |
| Dimension | See specification and size description |
| Response point1 | ≤50g |
| Repeatability | ±5%(50%loaded) |
| Consistency2 | ±15%(Batch of the same model) |
| Hysteresis | +10% (RF+ - RF-)/RF+ |
| Durability | ＞One million times |
| Initial Resistance | ＞10MΩ(Non-Loaded) |
| Response Time | ＜1ms |
| Resume Time | ＜15ms |
| Test Voltage | Typical Value DC 3.3V |
| Operating Temperature | -20℃ ~ 60℃ |
| EMI | No produce |
| ESD | Insensitivity |
Data reference sheet
| Model | Pressure/gf | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| ZD10-100 | Resistance/KΩ | 10.29 | 5.34 | 3.98 | 3.32 | 2.98 | 2.82 | 2.66 | 2.55 | 2.47 | 2.43 |
Note: The curve in the icon is drawn from data measured under
specific conditions. The relationship of the curve is for reference
only. The actual data should be tested after installation according
to the specific application.

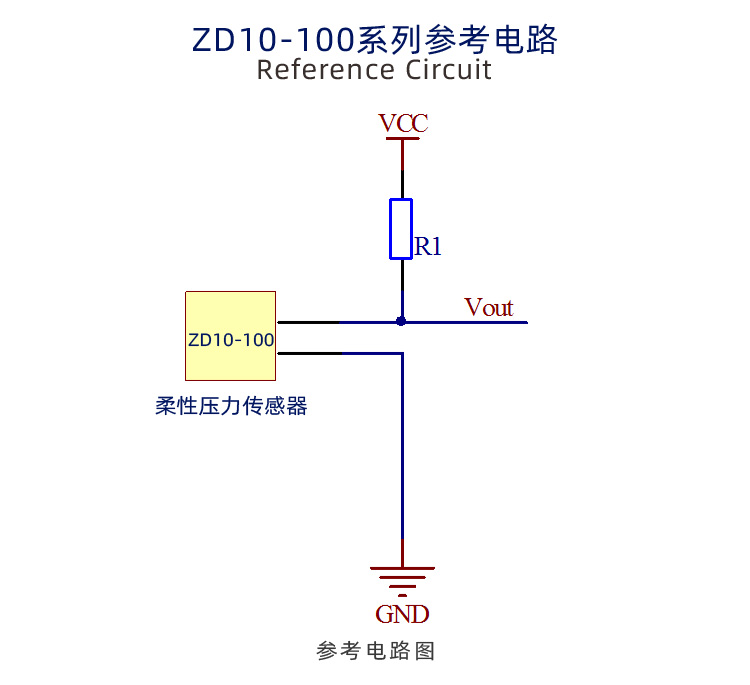

Reference Circuit
Instructions
- ZD10-100 flexible pressure sensor is a non-polar component, there
is no directionality in the circuit;
- When using, please place the pressure sensitive zone of the sensor
on a firm, flat surface. Using the sensor on a curved or irregular
surface will make the sensor initially conductive, that is, in a
"response" state when there is no pressure; in this state, the
sensor output resistance can still respond to pressure changes, and
the corresponding relationship is no longer applicable to the
reference data sheet;
- If the supporting surface and the force application surface are
both rigid and hard surfaces, and the contact surface is larger
than the sensor size (sensor sensitive area size 52mm*10mm), due to
the sensor's own structure, the pressure response may be small and
unstable. A round soft rubber pad needs to be affixed to the center
of the sensitive area, the diameter is slightly smaller than the
sensitive area, and the area should be greater than 60% of the area
of the sensitive area;
- You can use double-sided tape to fix the sensor on the supporting
surface. Pay attention that the supporting surface is tidy and
clean before pasting. It is recommended to use 3M brand
double-sided tape; provide customized services;
- After the sensor is stressed and maintains the pressure, the output
resistance value will drift slightly over time, usually within 5%.
This error can be reduced by the method of timing calibration. In
the calibration operation, the waiting time after applying pressure
is consistent with the waiting time in actual applications. Since
the force state of the sensor is different in different application
scenarios, it is recommended that the user arrange the sensor
according to the actual application scenario and test the drift
parameters by themselves.
Announcements
- When using the sensor, try to make the load received evenly and
avoid direct contact with the sensor by sharp objects;
- Over-range use will reduce the performance of the sensor or even
destroy the sensor;
- The sensor terminal is made of copper and tin-plated material, and
the lead can be welded according to the needs. It should be noted
that the soldering temperature should not be too high, it is
recommended that it should not exceed 300°C, and the contact time
should not exceed 1 second, so as to prevent the high temperature
from melting and deforming the film substrate.
