Smart Wireless Input Module for Security
Product Introduction:

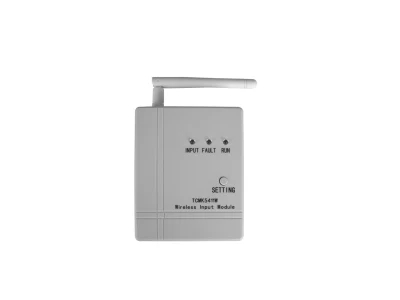

TCMK5411W wireless input module (hereinafter referred to as the
module) is suitable for installation in public places, factories
and other environments. When there is a fire alarm, after the
module receives the input signal specified by the manufacturer, it
will send an alarm signal to the control panel through wireless
communication technology, and the red light will always be on.
Features:
1. Adopting 470MHz wireless communication technology, no need to
pre-buried wiring, easy and quick engineering installation;
2. With battery low-voltage detection function, it can reflect the
battery power status in time;
3. Use microprocessor to realize signal processing, and use digital
signal to communicate with controller, work stably and reliably,
and have good suppression ability against electromagnetic
interference.
Technical specifications:
1. Battery type: CR17450(wired)
2. Rated working voltage:3.0V
3. Working Current: Standby Current≤13uA Alarm Current≤20mA
4. Indicators:Input light: red, always on when alarming
Fault Indicator: yellow, flashes twice every 48s when the battery
is under power, and periodically flashes when the communication
fails after being connected to the network
Working Indicator: Green, flashing periodically when the
communication is normal after entering the network
5. Coding Method: The controller is automatically assigned during
networking
6. Communication method: 470MHz FSK coded two-way communication
7. Communication distance:≤50m
8. Transmitted power:<20dBm
9. Reset method: by control panel
10.Application environment:
Type:indoor Atmosphere pressure:86kPa～106kPa
Temperature:-10℃～+55℃ Relative humidity≤95%,non-condensing
11.Outline dimension:101mm×137mm×43mm
12.Material and color:ABS, off-white
13. Weight: about 160g (including battery)
14.Executive standard: GB 16806-2006 "Fire Linkage Control System"
XF 1151-2014"General Requirements for Wireless Communication
Function of Fire Alarm System"
Fault and Abnormal information processing and Regular Check
| Fault | Reason | Solution |
| After the device alarms, the controller has no status prompt | The device is not connected to the network | Restart the network operation |
| Device networking is unsuccessful | Too far away from the controller or interference sources nearby | Move the device near the controller, reconnect to the network and
remove the source of interference |
| The fault yellow light keeps flashing | The battery is low and the device is not working properly | Change the battery |
